Mechanical disorder maps

The GPR method was initially developed to detect features and interfaces in the ground. We use the same technique to provide detailed geometry maps of concrete structures.

Typical structural disorders that can be identified in reinforced concrete and masonry structures are delamination, voids, and macro cracks. We can provide this information by using high resolution GPR scans in combination with our expertise.

Masonry disorder maps

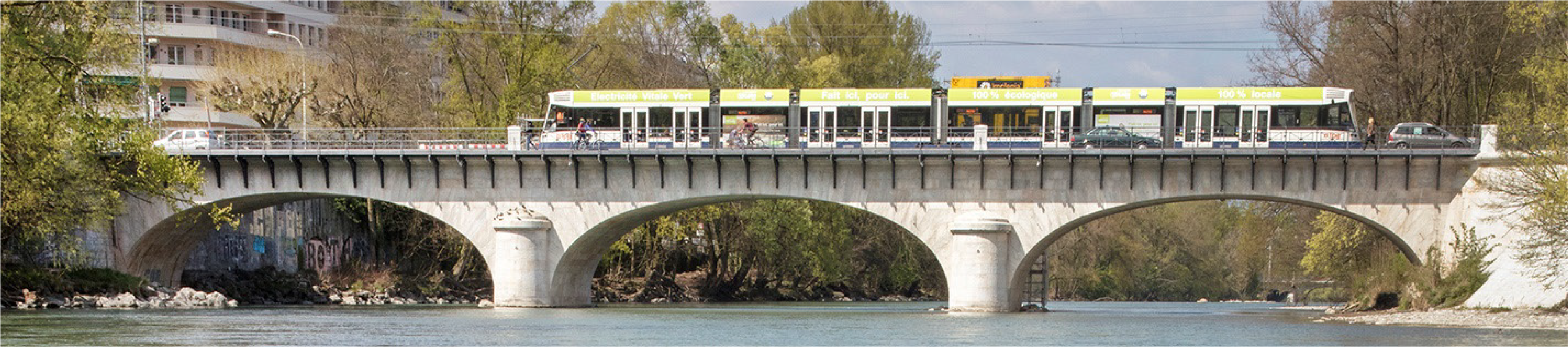

Masonry disorder map (1)

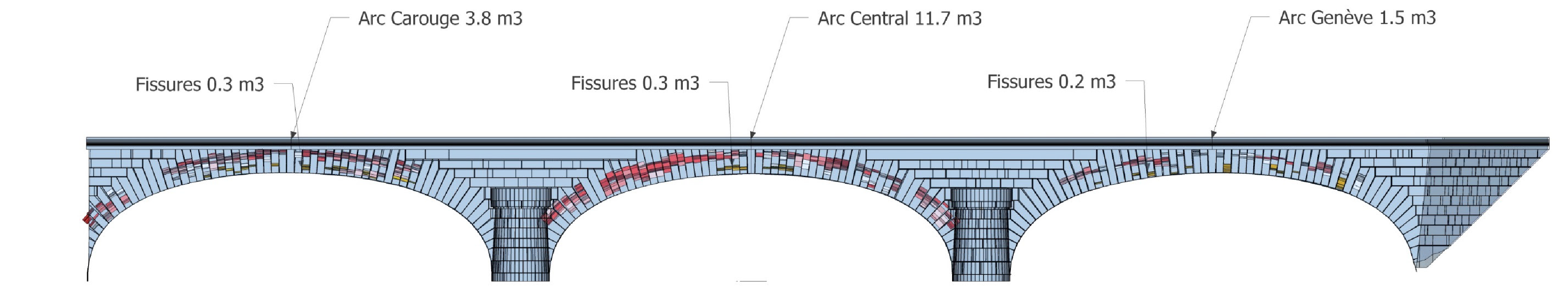

Masonry disorder map (2)

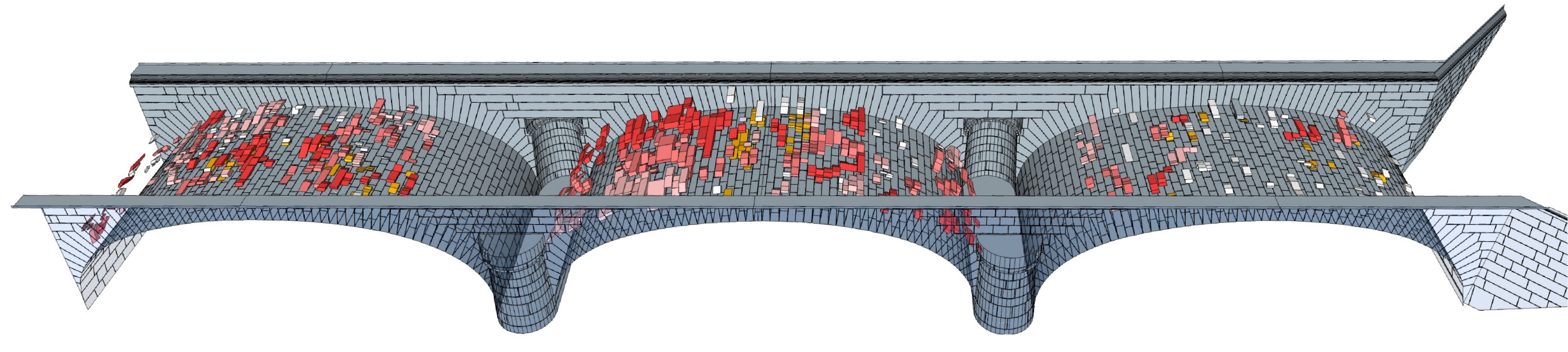

Masonry disorder map (3)

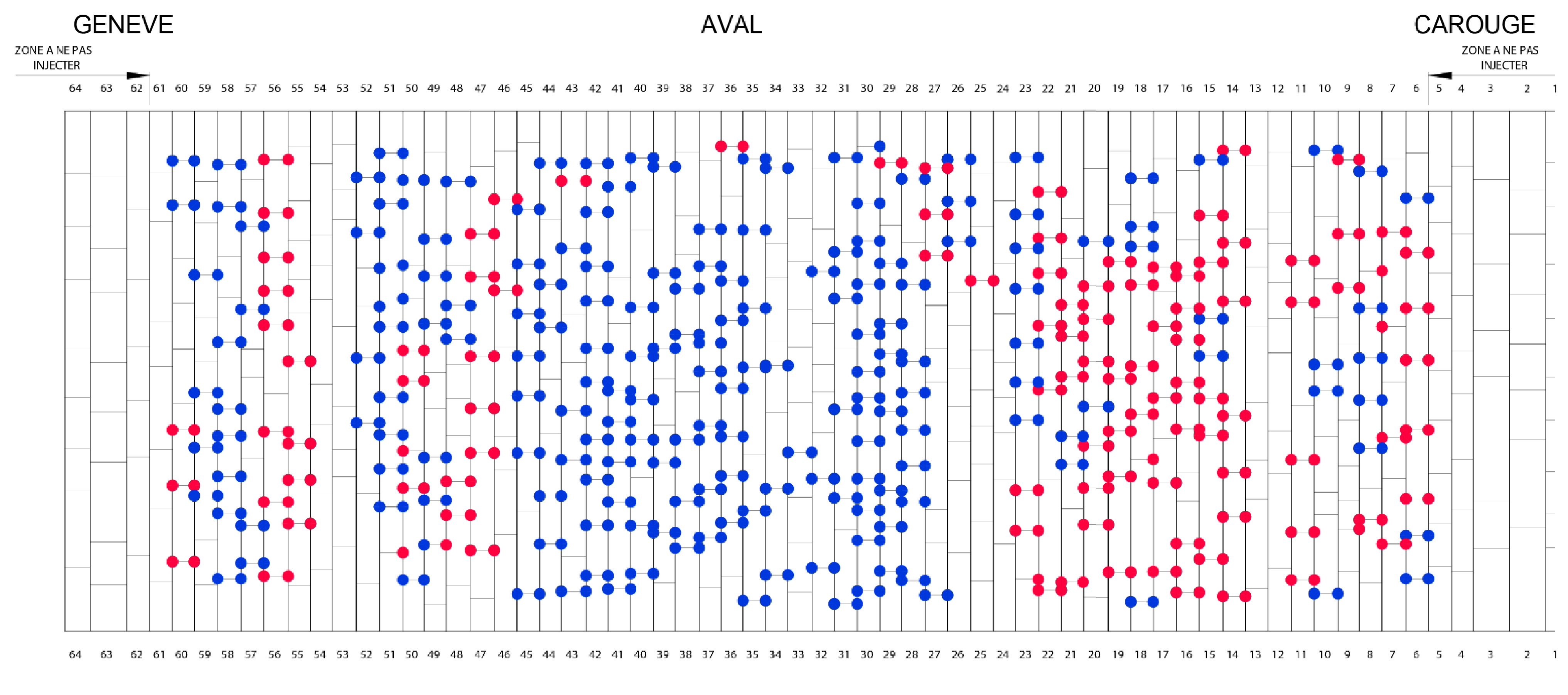

Masonry injection map (1)

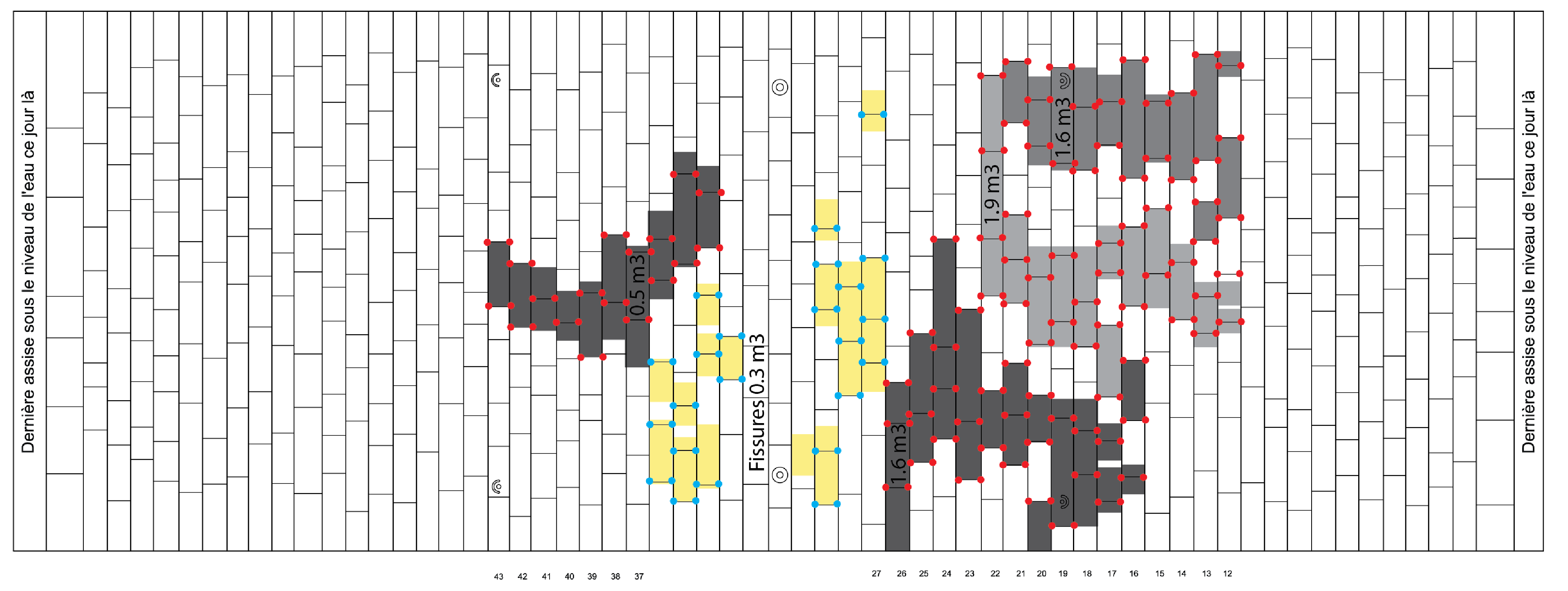

Masonry injection map (2)

Masonry injection maps

Masonry before and after injection

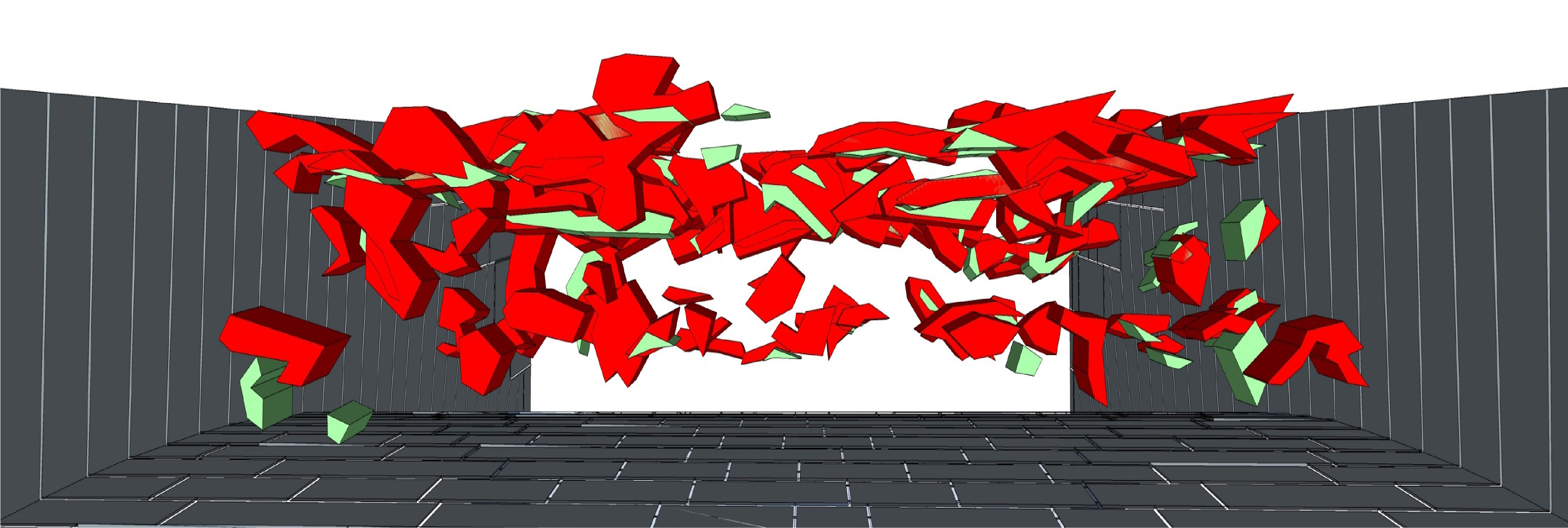

Masonry before injection

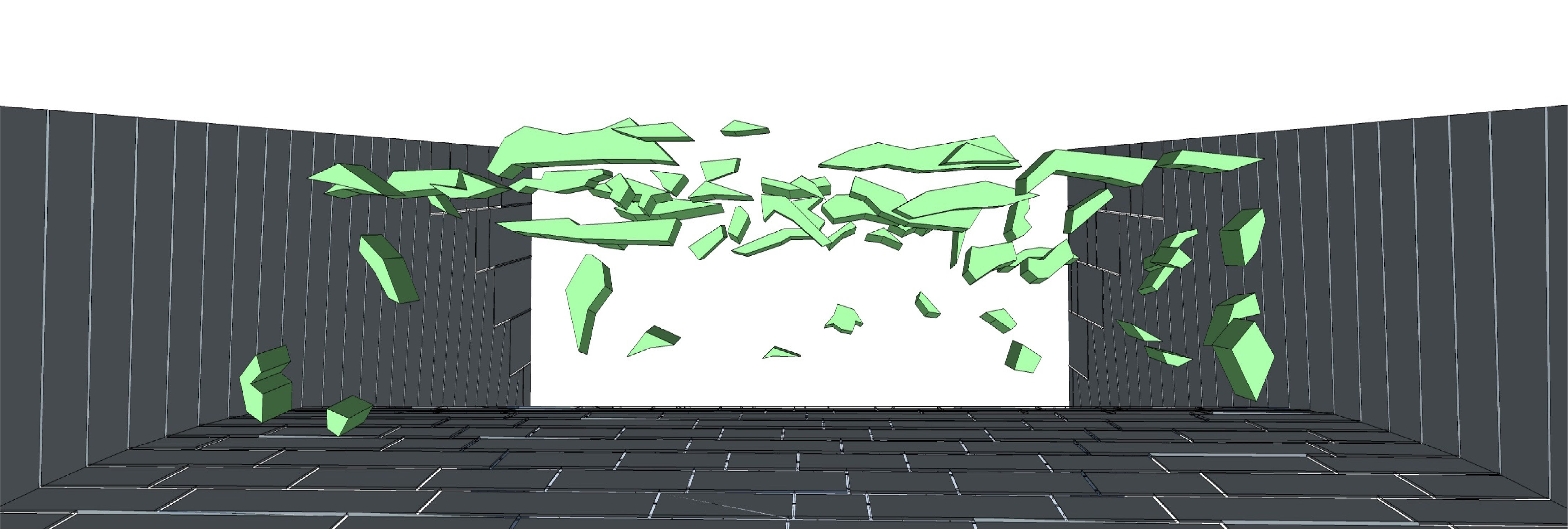

Masonry after injection
